Next Generation Pin Nailer
Pin Nailer 40Vmax XGT
Makita´s new compact and lightweight cordless pin nailer PT001G is developed mainly for interior nailing operations where a high quality finish is required. PT001G has Improved driver durability achieved by redesigning the shape of the driver tip and reducing thin places.

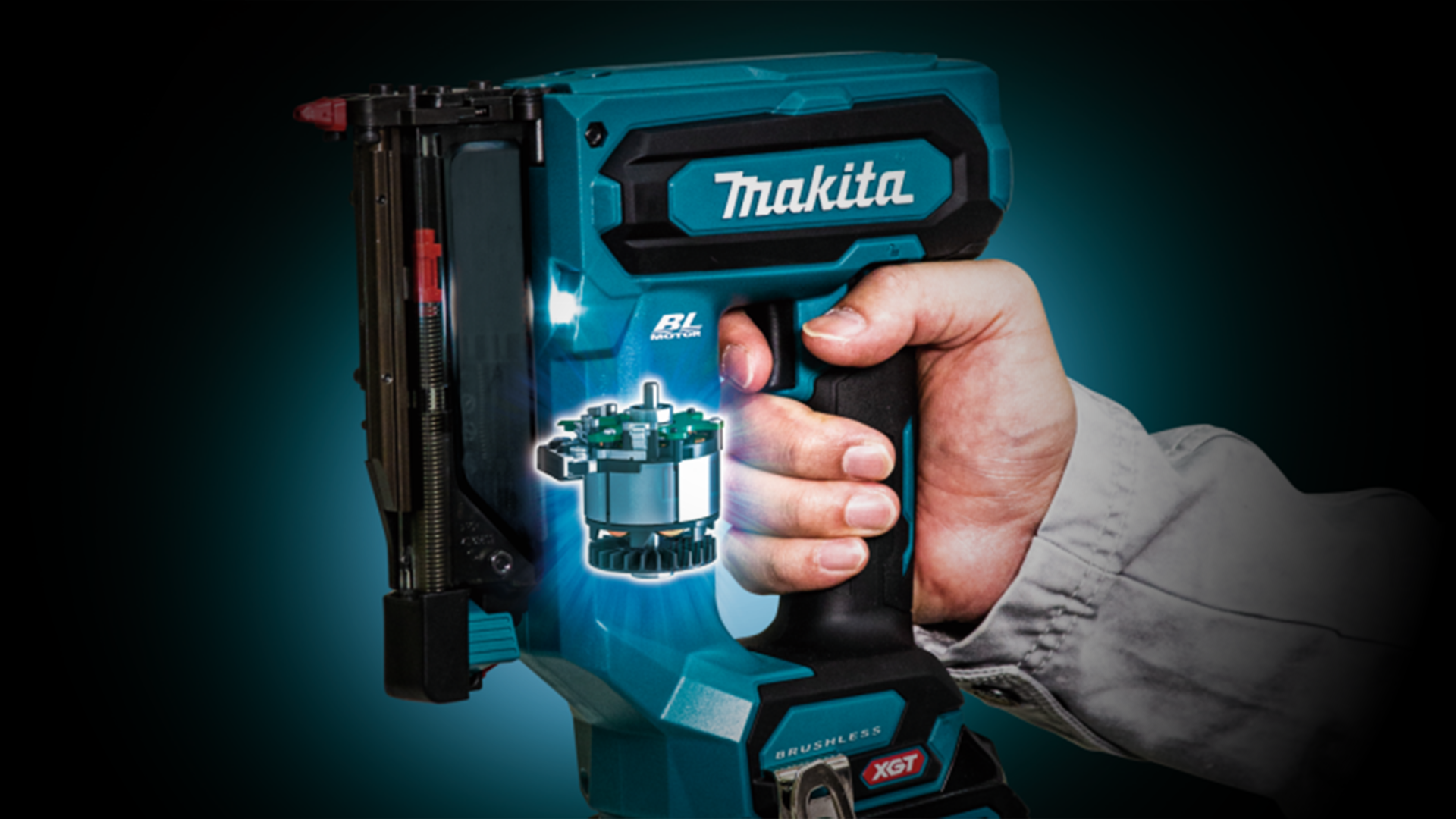

Firing with PT001G is quick and easy, thanks to operating 40Vmax XGT BL motor. The use of BL motor and redesigned driving spring lets users operate nearly as if they were using a pneumatic pin nailer. PT001G fires both vertically and horizontally.
Accurate And Efficient
Makita´s PT001G is an excellent choice for when you need to be accurate and highly efficient. It has Anti-dry fire mechanism and the Nose tip is designed to provide better visibility. It is also IP56 - rated for dust and shower-proof construction. PT001G Drives 5 different lengths of 23 gauge pin nails, 15 mm, 18 mm, 25 mm, 30 mm, 35 mm.
The machine has also contact arm mechanism that enables "continuous nailing" and "drag nailing" and low recoil mechanism that makes nailing of long pins easier without pushing down the pin nailer firmly.
6,000 Shots
Work volume on a single full battery ( BL4025 ) charge about 6,000 shots
Pin Nailer 40Vmax XGT

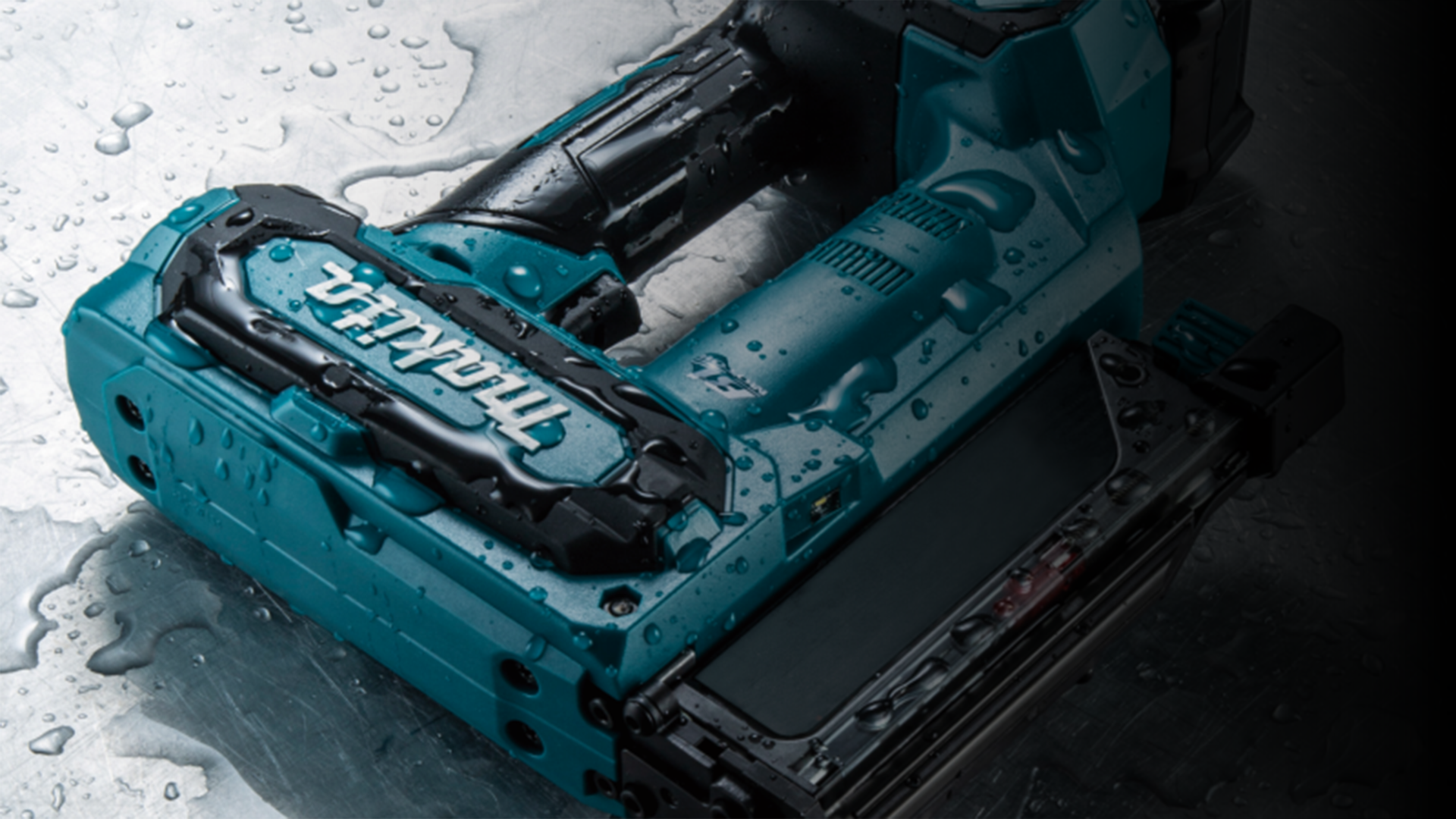

The Extreme Protection Technology (XPT) is engineered to provide improved dust and water resistance for operation in harsh conditions.
XGT® technology provides digital communication between battery and machine. This makes the machine easily adaptable to the tasks of the future. XGT® also offers more durability and enough power to make the brad nailer a genuine option even for most demanding users.
FEATURES AND TECHNICAL DATA

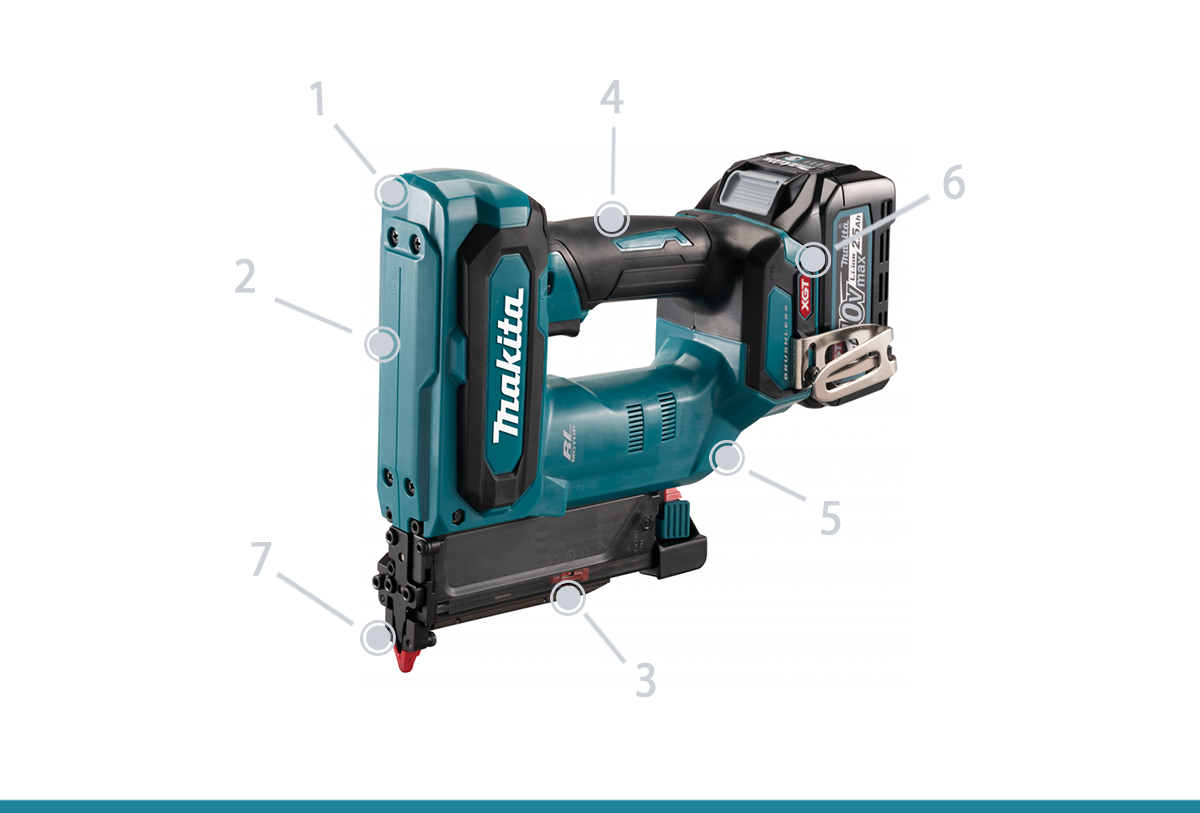

Features
1. Anti-dry fire mechanism
2. Contact arm mechanism
3. Interior nailing' Baseboard
4. Ergonomically designed grip
5. Low reaction force mechanism
6. Extreme Protection Technology (XPT)
7. Nose tip designed to provide better visibility
Technical Specifications
Magazine Capacity: 120
Net Weight: 2.4 - 3.0 kg
Dimensions (L x W x H):
w/o Battery: 218 x 86 x 226 mm
Capacity: Length: 15, 18, 25, 30, 35 mm,
Gauge: 23 Ga, Dia.: 0.6 mm
-
Battery protection
Circuit protects against overloading, over-discharging and over-heating
-
Drives 5 different lengths
15 mm, 18 mm, 25 mm, 30 mm and 35 mm (magazine capacity up to 120 nails)
-
IP56-rated
Dust and shower-proof construction
